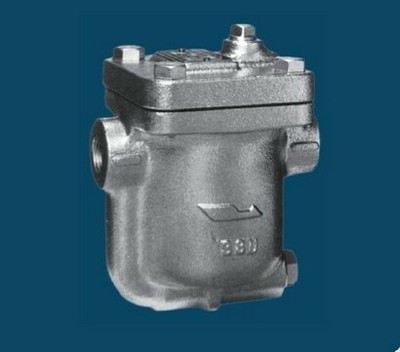

ES8B、ESH10、ESH12N

Features

ES8B、ESH10、ESH12N

1.Perfect SCCV system can compensate the error produced by the lever structure, and avoid hard collision, which ensures the tight shut-off and long service life.

2.Easy access to stainless steel internals simplifies maintenance.
3.Back pressure rate up to 90%.
4.Effective separation of condensate from steam(the steam flows in from bottom of the trap through a U type channel),and no steam leak.
5.Open float withstands water hammer. Air vent on the bucket top can effectively prevent steam locking and air locking.(Non-condensable air at high temperature can be discharged as well.)

Application: Suitable for steam main pipe, steam tracer,steam separation tank, exchanger, vulcanizer, hot air dryer, cylinder dryer, distiller, equipment for concentration and sterilizer in hospital,etc...
